מרחיקי מסך HDMI

מק"ט:14030115

מרחיק HDMI ע"ג CAT5E TCPIP עד 150 מטר

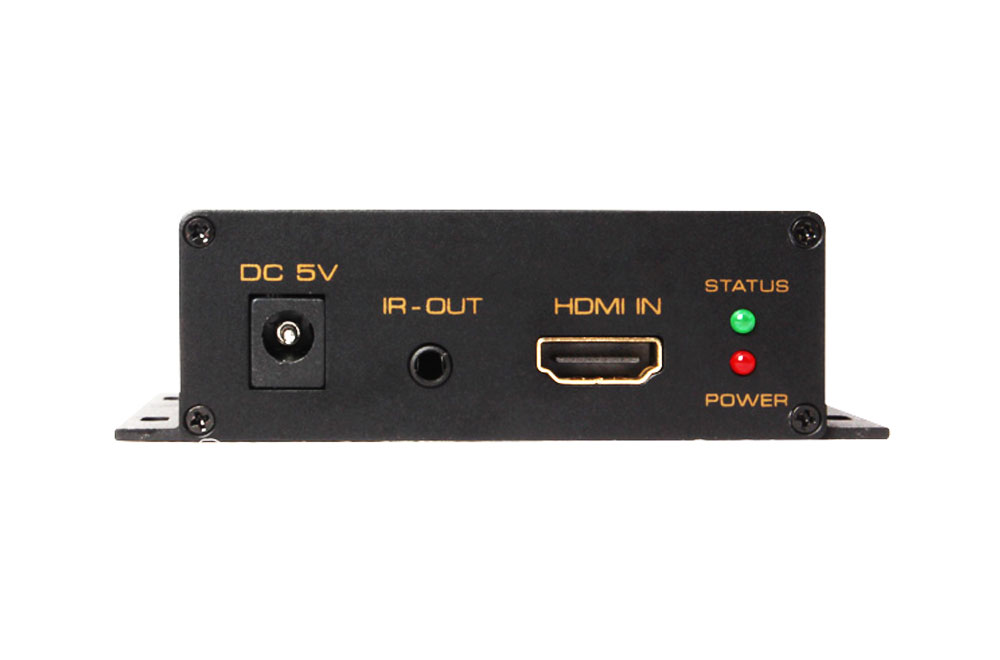

מרחיק מסך HDMI מבוסס TCPIP
ניתן לחבר עד 16 מסכים למחשב בודד

מחירים מיוחדים לרכישה בכמויות מתעניין במוצר זה?
פנה אלינו כאן

FEATURES:

Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Signal transmission: use one cat6/7(recommend cat6) to connect the sender and receiver, and the Ethernet cable can be up to 150m.
Support Point to Point, point to multi-point and cascade transmit way.
Support Resolution up to 1080P/60HZ.
Support 24/30/36Bit
Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support IR extender, it can do long distance control to the HD Source by using the IR received at the receiver.
Supports 802.3 IEEE Standard
CAT connections according to IEEE-568B
Support to transmit the longer distance by the help of the Ethernet switcher.
LED indication: when power is supplied or device is working, LED relative to is light.
No loss of quality
Installs in minutes
Need DC5V/1A power supply

SPECIFICATIONS: HDEX008M1

Video Input/Output Port...................... ..... HDMI
Length of CAT-6 cable between Rx and TX...................Up to 150 meters
HDMI Input......................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input........DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output...................24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth.................................225MHz
Max baud rate...................................6.75Gbps
Input Video signal .............................. 0.5~1.5Volts p-p
Output DDC signal ......................... 5Volts p-p (TT1L)
Input HDMI cable distance..................≤10m AWG26 HDMI standard cable
Output HDMI cable distance................≤15m AWG26 HDMI standard cable
Max working current.................................600mA
Power adapter format......Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A(RX/TX)
Operating Temperature range......................... -10 to +55℃
Storage Temperature range....................... -20 to +60℃
Operating Humidity range..................10 to 90%RH (No Condensation)
Storage Humidity range....................5 to 95%RH (No Condensation)
Dimension (L x W x H) ......................94X93.8X28 (mm)(RX/TX)
Weight.......................................150g(TX)
Weight.......................................152g(RX)
