ממתגי VGA KVM

מק"ט: 14340091

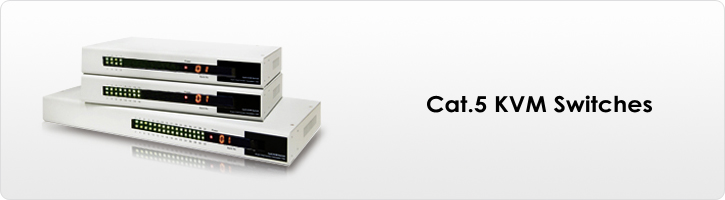

IP option UKS-0116MU 16PORT KVM CAT5

This 16-port CAT5 KVM switch allows user to control any of the 16 connected computers via a local console. Utilizing CATx (CAT5/CAT5e/CAT6) cables as carriers of KVM signals instead of the cumbersome conventional KVM combo cables makes cable arrangement much easier. It can also save much space and greatly reduce cable clutter in modern high-density server rooms or data centers. In case user needs remote IP access, there is a reserved slot on the back panel of this model for optional IP module. Besides, this model features daisy-chain capability, supporting up to 240 computer connections with control. The control interface is menu-based OSD with full features to maximize management convenience. Both PS/2 and USB interface are supported by this model for console and computer connection. This model is functionally versatile, robust and secured to help your daily server management routines.

מחירים מיוחדים לרכישה בכמויות מתעניין במוצר זה?
פנה אלינו כאן
  • Dual console for extra convenience in server management in two different location
  • Remote Console Activation/ Deactivation by the Local Console
  • Dual Interface support for PS/2 and USB keyboard/ mouse
  • OSD Menu Console for configuration and operation
  • Smart Alert Messaging System for immediate ON-Screen system status report
  • Dedicated Cascade port to daisy-chain up to 8 units controlling up to 256 computers
  • Password Protection enable/disable
Model No. UKS-0116MU
Product Description 16-Port CAT5 KVM Switch w/ OSD & IP Option
Number of Ports 16
Number of Console 1
Maximum PC Connections 240
Console Keyboard Connector PS/2 Female
Console Mouse Connector PS/2 Female
Console Video Connector VGA HDB15 Female
PC Keyboard Connector Via Video RJ45
PC Mouse Connector Via Video RJ45
PC Video Connector 16 x RJ45
Chain Topology Daisy-Chain
Daisy-chain port Connector HDB15 FemaleHDB15 Male
Chain Levels
PC selection Hotkeys / OSD
PC port LED 16 (Green)
Power LED 1 (Red)
Analog Display Resolution 1600 x 1200
Keyboard & Mouse Emulation Yes
OSD Menu Yes
Auto Scan Delay Time 5~99 sec
Operation Temperature 0 ~ 40°C
Storage Temperature -20 ~ 60°C
Humidity 0~90% RH, Non-Condensing
Power type 2.1mm Power Jack
Power Adapter DC 9V
Weight 2.2 Kg
Dimension(L×W×H) 438 x 200 x 44mm
Safety / Emission FCC, CE
