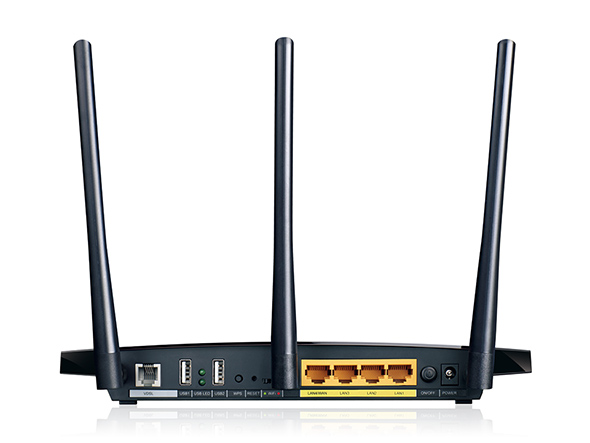

| Interface | 4 10/100/1000Mbps RJ45 Ports 1 RJ11 Port 2 USB 2.0 Ports |
|---|---|
| Button | 1 Power On/Off Button 1 WPS Button 1 Wi-Fi On/Off Switch 1 RESET Button |
| External Power Supply | 12VDC/1.5A |
| IEEE Standards | IEEE 802.3, 802.3u, 802.3ab |
| VDSL2 Standards | ITU-T G.993.2 ITU-T G.998.4 (G.INP） |
| ADSL Standards | Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.994.1 (G.hs) ITU-T G.995.1 |
| ADSL2 Standards | ITU-T G.992.3 (G.dmt.bis) |
| ADSL2+ Standards | ITU-T G.992.5 |
| Dimensions ( W x D x H ) | 9.6*6.4*1.3 in.(243 x 160.6 x 32.5mm) |
| Antenna Type | Three 5GHz 5dBi detachable antennas (RP-SMA) Two 2.4GHz 3.5dBi internal antennas |
| Compatibility | NBN - Fibre to the Node (FTTN) - DSL Modem Router Mode. NBN - Fibre to the Building (FTTB) - DSL Modem Router Mode. NBN - Fibre to the Premises (FTTP) - Wireless Router Mode. NBN - Fibre to the Home (FTTH) - Wireless Router Mode. For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a,802.11b, 802.11g, 802.11n |
| Frequency | 2.4GHz and 5GHz |
| Transmit Power | <20dBm(EIRP) |
| Wireless Security | Support 64/128 bit WEP, WPA /WPA2, WPA-PSK/WPA2-PSK Wireless MAC Filtering |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | WMM, Bandwidth Control (IP QoS) |
| Security | NAT Firewall, SPI Firewall, MAC / IP / URL Filtering |
| IPv6 | IPv6 and IPv4 dual stack Supported IPv6 Tunnels: DS-Lite, 6RD, 6 to 4 Supported IPv6 Connection Type: PPPoEv6, DHCPv6, Static IPv6 |
| Management | Web Based Configuration(HTTP), Remote management, Telnet management, Command Line Interface, SSL for TR-069, SNMP V1/V2C, Web Based Firmware Upgrade, CWMP(TR-069), Diagnostic Tools |
| Port Forwarding | Virtual server, Port Triggering, UPnP, DMZ, Manage Control |
| VPN Pass-Through | PPTP, L2TP, IPSec Pass-through |
| ATM/PPP Protocols | ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) PVC - Up to 8 PVCs |
| Advanced Features | Parent Control Traffic Shaping(ATM QoS) UBR, CBR, VBR-rt, VBR-nrt; Dynamic Host Configuration Protocol (DHCP), DHCP relay; Network Address Translation (NAT); PVC/Ethernet Port Grouping Static Routing, RIP v1/v2 (optional); DNS Relay, DDNS |
| USB Sharing | Storage Sharing FTP Server Media Server Print Server |
| IGMP | IGMP snooping V1/V2/V3 IGMP Multicast |
| IPSec VPN | 10 IPSec VPN Tunnels LAN-to-LAN Main, Aggressive Negotiation Mode DES, 3DES, AES128, AES192, AES256 Encryption Algorithm MD5, SHA1 Authentication Algorithm Manual, IKE Key Management Mode Dead Peer Detection (DPD) Perfect Forward Secrecy (PFS) |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | TD-W9980 External Splitter RJ-11 Telephone Line RJ-45 Ethernet Cable Quick Installation Guide Resource CD Power Adapter |
| System Requirements | Windows 10/8/7/Vista/XP or Mac OS or Linux-based operating system |
| Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
