ממתגי VGA KVM

מק"ט: 14340094

KVM VGA/USB2.0 2PC DDC AHCP02A י WAVE

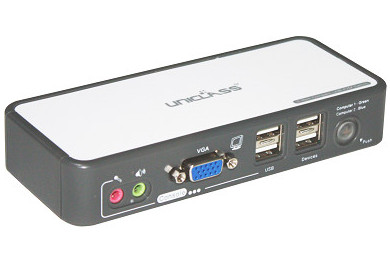

The AHCP02A is a 2-port USB KVM Switch with Audio and Microphone switching function. It also provides two USB 2.0 hub ports for high-speed USB 2.0 devices sharing.

  It allows you to control 2 USB-enabled multimedia computers and two USB 2.0 devices using only USB keyboard, mouse, monitor and a set of speakers and microphone.

You can select the computers, USB device hub port control and audio/mic channel independently, using either front-panel buttons or keyboard hotkeys.

 This stylish Compact Desktop KVM Switch family give more than something of an ordinary desktop KVM Switch: It has everything worthy and noble inside their colorful apparels—goodies such as the True Transparent USB (TTU) keyboard/mouse Emulation and All-time DDC video emulation! With both technologies, you can simply sit back and forget about everything nasty about keyboard, mouse and video glitches due to incompatibility.

מחירים מיוחדים לרכישה בכמויות מתעניין במוצר זה?
פנה אלינו כאן
  • 2 extra USB 2.0 device port for high-speed USB device sharing
  • True Transparent USB emulation technology for any keyboard and mouse
  • All-time DDC emulation for ultimate video compatibility
  • Independent peripheral switching configurable by hotkeys
  • LED indicators for easy status monitoring
  • Low power consumption using ASIC
AHCP02A Model No.
2-Port VGA USB KVM Switch w/ Audio, Mic & Hub Product Description

2 Number of Ports

1 Number of Console

USB Type A Female  Console Keyboard Connector
USB Type A Female Console Mouse Connector

VGA HDB15 Female Console Video Connector

2 x 3.5mm Audio/Mic Jack Female Console Audio/Mic Connector

2 x USB 2.0 Type A Female Console USB Hub Ports

2 x USB Type B Female  PC Keyboard Connector

Via PC Keyboard Connector  PC Mouse Connector

2 x VGA HDB15 Female  PC Video Connector

4 x 3.5mm Audio/Mic Jack Male  PC Audio/Mic Connector

Push Button / Hotkeys  PC selection

1 (Green / Blue )  PC port LED

2048 x 1536  Analog Display Resolution

Yes (TTU)  Keyboard & Mouse Emulation

5~100 sec  Auto Scan Delay Time

0 ~ 40°C  Operation Temperature

-20 ~ 60°C  Storage Temperature

0~90% RH, Non-Condensing  Humidity

2.5mm Power Jack  Power type

DC 5V/2A  Power Adapter

160g  Weight

154 x 65 x 27mm  Dimension(L×W×H)

FCC, CE  Safety / Emission
