| * | Controls PCs with one USB keyboard, USB mouse and monitor respectively |
| * | Supports USB 1.0, 1.1, 2.0 specification compliant and supports UHCI, OHCI & EHCI host controller |
| * | Supports USB Boot protocol & Wakeup Devices |
| * | Supports speaker & microphone |
| * | Supports the Windows, Linux and Macintosh |
| * | Supports Microsoft IntelliPoint 5.0 drivers & Logitech SetPoint Driver (Except MX5500, Logic) |
| * | Superior video quality - Up to 1920 x 1440, DDC, DDC2, DDC2B, DDC2AB, 200MHz |
| * | 3 ways for PC selection -- Push-button switch or hot key or mouse clicking |
| * | Easy to install--No software required |
| * | Hot Pluggable |

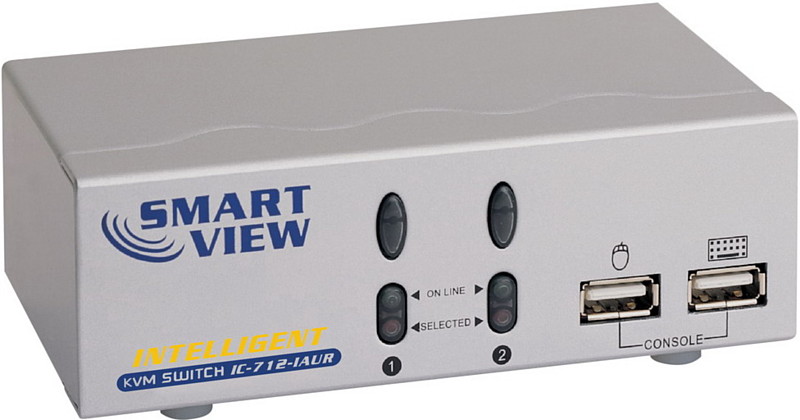

| IC-712-IAUR | Function | |
| 2 | PC Connectors | |

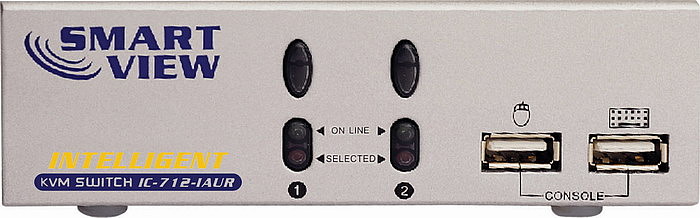

| Push-button Switch / Hot Key / Mouse Clicking | Port Selection | |
| 2 | LEDS | On Line |
| 2 | Selected | |

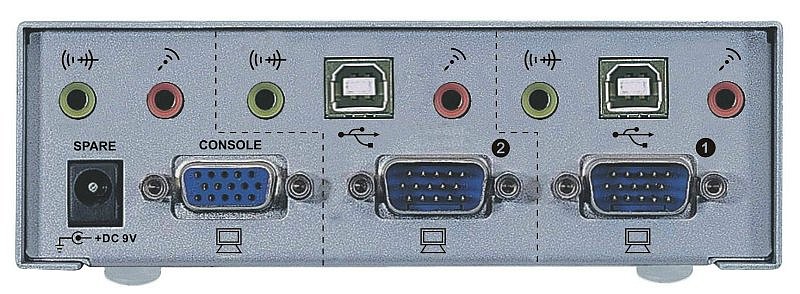

| 2x USB A-Type | Connector-Keyboard, Mouse | Console Port |
| 2x USB B-Type | CPU Port | |
| 1x HD-15 Female (Std. VGA/SVGA) | Connector -Monitor | Console Port |
| 2x HD-15 Male (Std. VGA/SVGA) | CPU Port | |
| 1 x Audio, Microphone | Connector -Audio,Mic. (Jack) | Console Port |
| 2x Audio, Microphone | CPU Port | |
| 1920x1440 (Max.), DDC, DDC2, DDC2B, DDC2AB, 200MHz | VGA Resolution | |
| DC 9V 300mA (Min.) spare | Power Adapter | |
| 5 sec ~ 30 sec | Scan Interval | |
| Metal | Housing | |
| 469 g | Weight | |
| 130x76x42 mm | Dimensions (LxWxH) | |
